30kW modular Energy storage inverter
Key attributes
| Brand | Rw Energy |
| Model NO. | 30kW modular Energy storage inverter |
| Rated voltage | 400V |
| Mounting type | 机架式 |
| Rated Output Rating | 30KW |
| Series | PQstorI Series |
Product descriptions from the supplier
Description
Overview
Modular and compact
PQstorI is available with a modular concept, allowing to add units in parallel for more output power. Its three level inverter offers a compact design that fits all your needs while optimizing space requirements.
Flexible and easy to install
PQstorI can operate with most of the third party controllers that communicate over MODBUS TCP/IP protocol. It provides flexibility to the system integrators because of its easy mounting and connection features.
Enhanced communication features
Wi-Fi enabled modules allow users to monitor and set parameters via smartphone or computer. PQconnecT, a DIN rail mounted Modbus TCP/IP to CAN converter facilitates communication with external Modbus TCP based controllers.
Applications
Commercial and industrial
● Peak shaving
● Solar self-consumption
Renewable integration
● Capacity firming
● Power ramp control
E-mobility infrastructures
● Grid integration
● Peak shaving
Grid services
● Frequency regulation
● T & D deferral investment

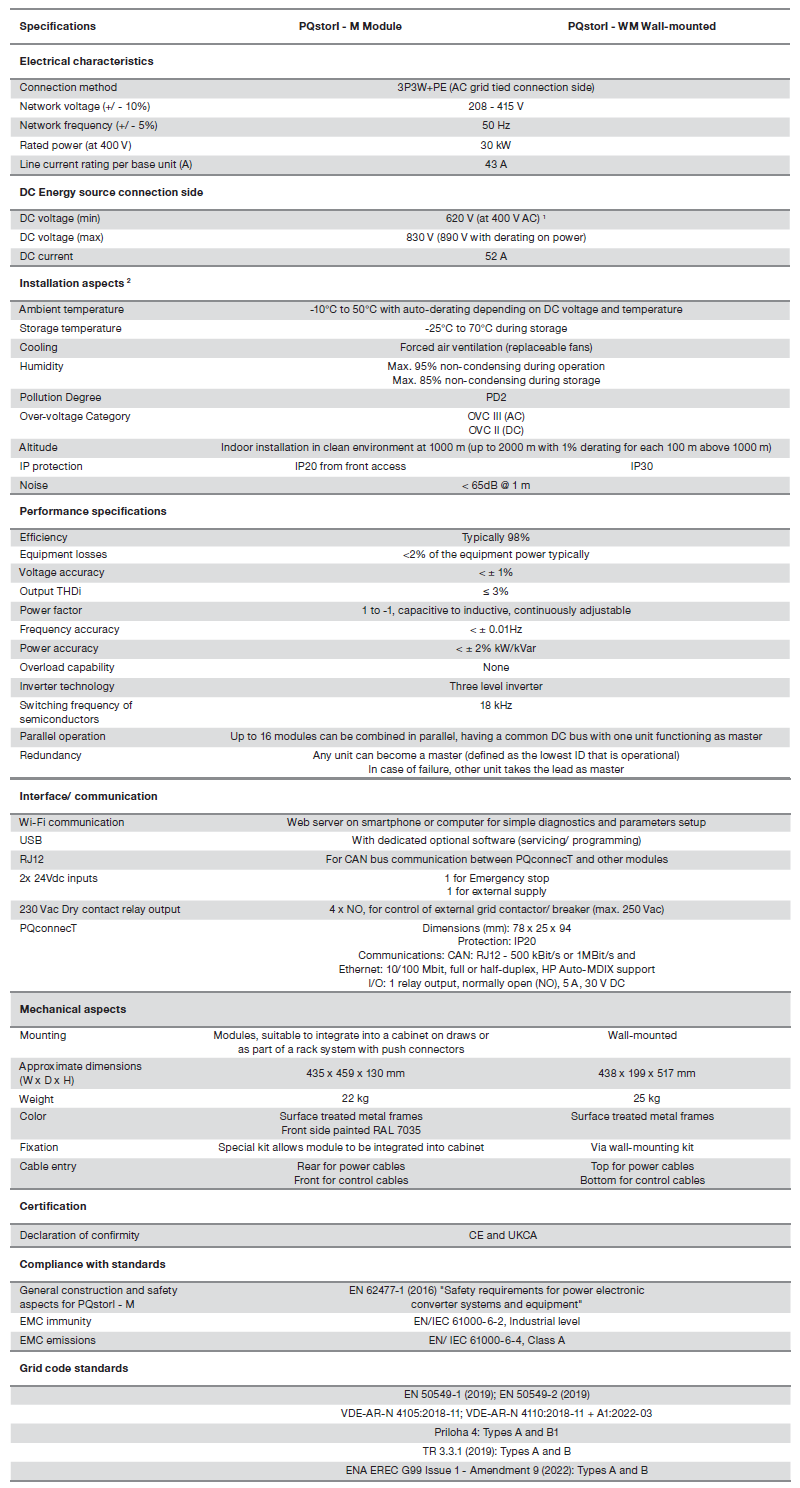

Technology parameters
