5kW 7.5kW Vehicle DC Discharger V2L( Vehicle to Load)
Key attributes
| Brand | Rw Energy |
| Model NO. | 5kW 7.5kW Vehicle DC Discharger V2L( Vehicle to Load) |
| Rated Output Rating | 5kW |
| Output Voltage | AC 220V/230V |
| Power Conversion Efficiency | >90% |
| Connector Options | CHAdeMO |
| Cable Length | 2m |
| Input Voltage | DC 320V-420V |
| Series | WZ-V2L |
Description
Description：

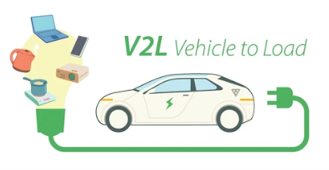

V2L (Vehicle to Load): Vehicle to Load. It can use electric vehicles as a mobile power source to supply power to other external load devices. For example, when camping outdoors, it can supply power to devices such as electric ovens and stereos, expanding the usage scenarios of electric vehicles.This V2L (Vehicle-to-Load) DC discharger supports dual power specifications of 5kW and 7.5kW, directly converting DC power from EV power batteries into stable load electricity to achieve flexible energy output of "vehicle as power source". The device adopts high-frequency isolated DC-DC conversion technology with an efficiency of over 96%, compatible with mainstream EV brands such as Tesla, BYD and NIO, providing pure DC power for outdoor equipment and emergency power scenarios without additional inverters.
Features:
Connector: CCS1 / CCS2 /CHAdeMO / GBT / Tesla •Start method: Press the button.
Cable length：2m •Dual socket 10A&16A.
Weight: 5kg •Product size: L300mm*W150mm*H160mm.
EV battery voltage: 320VDC-420VDC.
Output voltage: 220VAC/230VAC 50Hz.
Rated power: 5kW / 7.5kW.
\
Reference Projects for DC Discharger V2L
-
RW Energy Shijiazhuang 480 kW Split Type DC Fast Charging System Case StudyEmpowering the upgrading of charging infrastructure in Shijiazhuang with high-power split fast charging technology, this solution leverages the architectural advantages of 480kW centralized power supply and distributed deployment. It delivers robust high-concurrency processing, all-scenario protection and comprehensive safety control, effectively easing charging congestion and consolidating core energy supply nodes along urban arterial roads.01 Project Overview1.1Project BackgroundWith the rapid -
RW Energy Baoding 60 kWh 30 kW Energy Storage Integrated DC Fast Charging Station Success CaseAdopting an innovative integrated energy storage and fast charging architecture, this solution addresses insufficient grid capacity in urban built-up areas. Featuring a compact integrated design, full-range environmental adaptability and multi-vehicle compatibility, it enables lightweight deployment of energy replenishment stations in public parking lots, creating a replicable model for non-grid-expansion charging construction and distributed energy storage charging development in northern citie -
RW Energy Hangzhou 12 Units 120 kW Integrated DC Fast Charging Station Success CaseClosely responding to the upgrading needs of Hangzhou’s urban charging network and focusing on high-frequency charging scenarios in core business districts, this solution deploys 12 sets of 120kW integrated DC fast charging units. Combining dynamic power allocation and industrial-grade protection technologies, it addresses the challenges of high concurrent usage, harsh outdoor conditions and unattended operation, empowering the construction of a convenient, efficient and intelligent urban -
15 Units 20kW Portable V2V DC Chargers for Shijiazhuang EV Rescue Service Mobile Charging Upgrade01 General Overview: Shijiazhuang Mobile Rescue Power Upgrade1.1 Project BackgroundShijiazhuang, Hebei, as a major transportation hub in North China, has seen an explosive growth in Electric Vehicle (EV) ownership. Consequently, the demand for roadside assistance due to battery depletion—especially on highways, urban expressways, and remote areas—has surged. Traditional towing services are not only costly and time-consuming but also contribute to traffic congestion.To improve respons -
30 Units of 320kW Integrated DC Chargers Powering Green Logistics in Luquan Project01 General Overview: Luquan Heavy Truck Project1.1 Project BackgroundAs the logistics industry transitions toward low-carbon solutions, the Luquan District has actively promoted heavy truck electrification pilot projects. The Luquan Heavy Truck Project aims to build an ultra-fast charging network covering core logistics parks, addressing the "charging efficiency" pain point of electric heavy trucks under high-intensity operations. A total of30 units of 320kW integrated DC chargershave been deplo
Documentation Resource Library DC Discharger V2L
FAQ for DC Discharger V2L
The power is 5kW/7.5kW, with an output of 230V AC 50Hz. It can be connected to electric vehicles to supply power to small devices such as camping appliances and emergency tools, suitable for outdoor travel and emergency power supply scenarios.
The product meets international engineering electrical safety norms and has passed strict platform qualification certification and technical evaluation, ensuring compliance with IEC-related standards for industrial inverters. For environmental adaptability (critical for overseas complex engineering sites):
- Temperature range: -10℃~+40℃ (derating required above 40℃), suitable for most temperate and subtropical engineering environments;
- Altitude: ≤1000 meters (derating by 1% for every 100 meters above 1000 meters), adaptable to high-altitude mining areas in regions such as South America and Central Asia;
- Relative humidity: 5%~95% (non-condensing), compatible with humid or dry engineering sites. Its IP00 protection level can be used with optional filters to cope with dusty industrial environments common in overseas mining projects.
