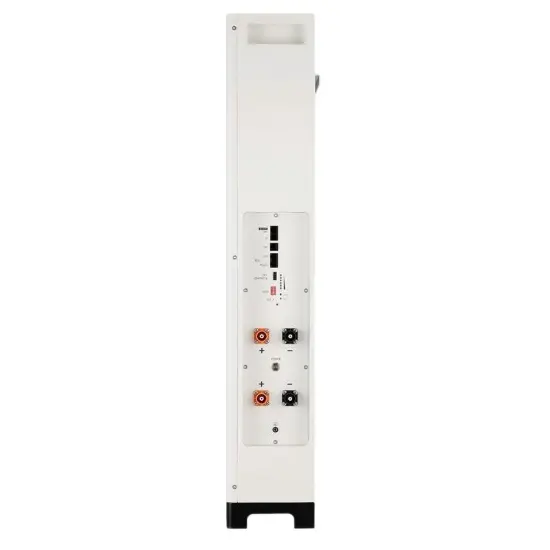

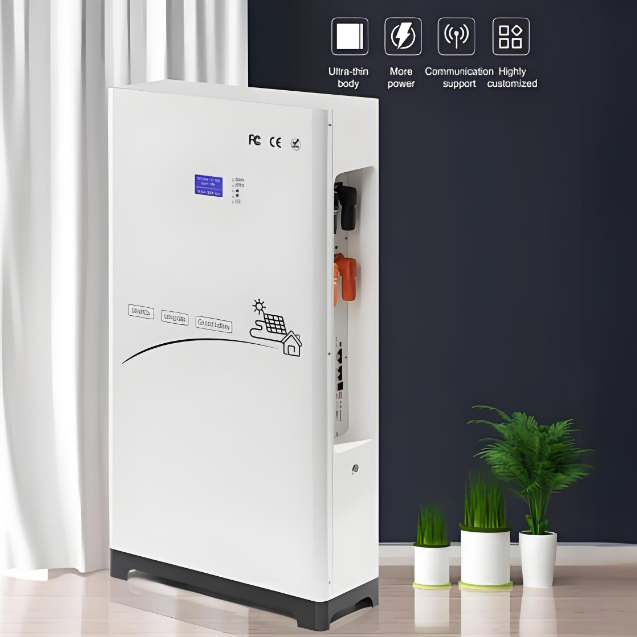

9.6KWh/10.24KWh Household Column energy storage battery

The L48 series user energy storage products adopt high-quality square aluminum-shell lithium iron phosphate battery cells and are equipped with an intelligent BMS (Battery Management System). They feature a long cycle life, high safety performance, an exquisite appearance, flexible combination, and easy installation. The battery pack is equipped with a touch LCD screen, enabling visual display of operating data. It is compatible with most brands of inverters and can communicate with them. These products are widely used in distributed photovoltaic systems, home energy storage systems, and communication base stations. They provide efficient clean energy for electrical equipment in households, industry, commerce, agriculture, and other fields.

Peculiarity

• High energy density.

• Equipped with BMS battery management system, longer cycle life.

• Beautiful appearance; Free combination, convenient installation.

• The panel integrates a variety of interfaces, supports multiple protocols, and ADAPTS to most photovoltaic inverters and energy storage converters.

• Can be customized adjustment management battery charging and discharging strategy.

• Modular design, easy maintenance.

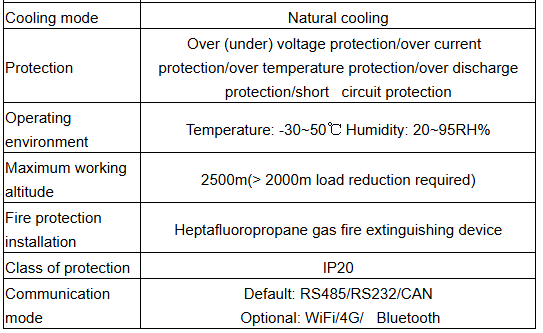

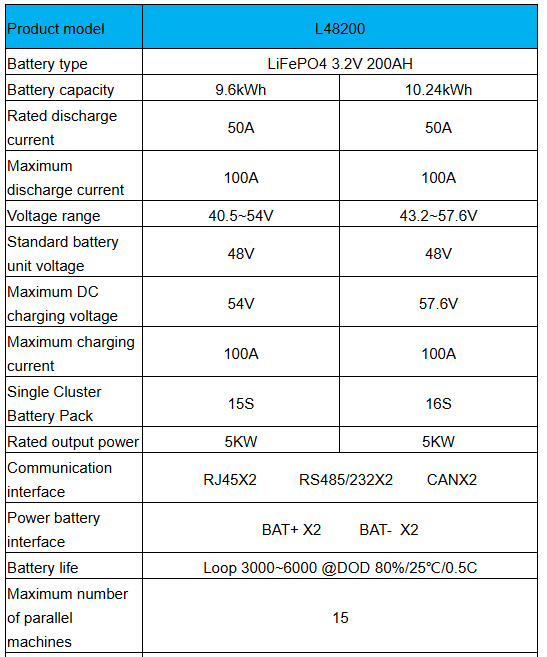

Technical parameter

 NOTE:

• The A-class cell can charge and discharge 6000 times, and the B-class cell can charge and discharge 3000 times, and the default discharge ratio is 0.5C.

• Class A cell warranty 60 months, Class B cell warranty 30 month.

Application scenarios

1. Household Emergency Energy Storage

   Adaptation Advantages: A 10.24kWh capacity can support a refrigerator (0.8kWh/day) + lighting (0.2kWh/day) + router (0.1kWh/day) to work continuously for 8-10 days; the columnar design covers an area of 0.2㎡ and can be placed on the balcony/corner; check the power via a mobile APP without on-site inspection, covering "household emergency columnar energy storage batteries" and "small apartment energy storage batteries".

2. Small Commercial Store Backup Power Supply

   Adaptation Advantages: A 9.6kWh capacity can support convenience store cash registers + LED lights to work for 6-8 hours; a 50A rated discharge current is suitable for small equipment; natural cooling without additional heat dissipation reduces the operation and maintenance costs of commercial stores, covering "small commercial store columnar energy storage batteries" and "convenience store backup batteries".

3. Household Photovoltaic Supporting Energy Storage

   Adaptation Advantages: Supports the connection of photovoltaic inverters, stores excess photovoltaic power during the day, and gives priority to using stored energy at night; can be paralleled with 15 units to expand capacity to 150kWh, suitable for larger photovoltaic installed capacity, covering "photovoltaic supporting columnar energy storage batteries" and "household solar energy storage batteries".
