Remote OM Technical Solution for South Africa Distribution Lines - RWZ-1000 Cloud-Based Monitoring
Technical Framework for Digitally Reimagining Power Grid OM in South Africa
Shifting from "post-fault repair" to "predictive maintenance," reshaping the operation and maintenance processes of the distribution network through digital means.
- Applications: Unmanned substations, cross-regional long-distance transmission lines, and high-risk operational zones.
- Product Portfolio: RWZ-1000 intelligent monitoring system and RW8000 cloud management platform.
- Standards: IEC 60870-5-104, IEEE 1547, and NRS 048.
Introduction
In geographically vast markets such as South Africa, traditional maintenance of distribution lines relies heavily on manual inspections, suffering from three major persistent issues: "Invisible, Unidentifiable, and Inaccessible." Especially in remote areas or security-sensitive regions, physical inspections are not only high-cost but also accompanied by significant personal safety risks. This solution utilizes the remote sensing capabilities of the RWZ-1000 system to build an OM system integrating real-time monitoring, automatic diagnosis, and remote configuration, aiming to shorten the distribution network MTTR (Mean Time to Repair) by more than 75%.
1. Analysis of Traditional OM Pain Points
1.1 High Labor Costs Due to Blind Inspections
OM teams often deploy only after receiving user complaints. Due to the lack of accurate data on fault sections, they frequently must inspect 11kV and 22kV lines pole-by-pole, wasting significant time on travel and ineffective searching.
1.2 Misdiagnosis Due to Lack of Fault Characteristic Data
Traditional recloser recorders only provide simple action counts, unable to record transient waveforms at the time of fault occurrence. OM engineers find it difficult to distinguish between flashovers caused by equipment aging versus external damage, preventing targeted preventive maintenance.
1.3 Safety Risks of Field Operations
During extreme weather or periods of social instability, field inspection personnel face risks from lightning strikes, falls, and human attacks. "Zero-touch" maintenance is an inevitable choice to protect frontline employees.
2. Remote OM Solution Architecture

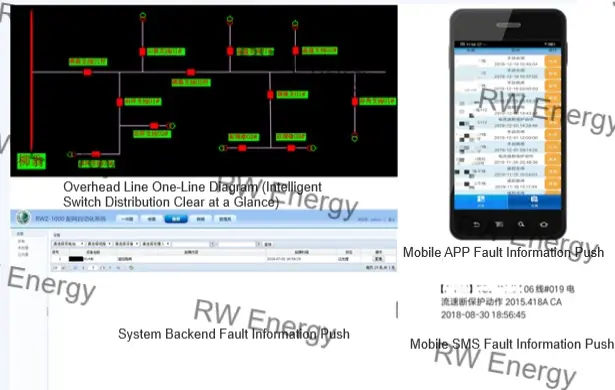

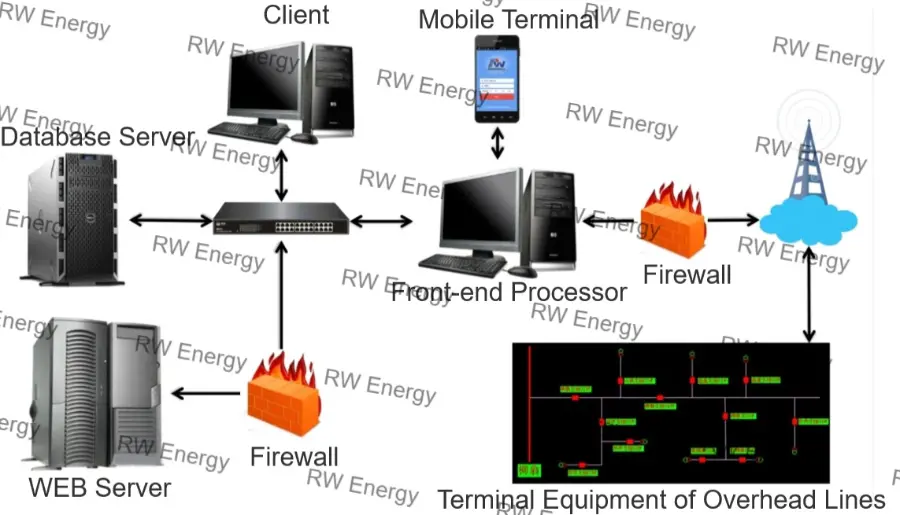

The system achieves efficient maintenance through "Edge-Cloud Collaboration":
| Module | Functional Description | Maintenance Value |
|---|---|---|
| Intelligent Edge | RWZ-1000 captures zero-sequence current and harmonics in real-time. | Achieves localized fault identification and filters transient interference. |
| Cloud Communication Gateway | Supports encrypted transmission over 4G, 5G, and NB-IoT protocol stacks. | Ensures data security within public network environments. |
| RW8000 Platform | Automated reports, recording analysis, and equipment health evaluation. | Decision-makers can issue repair instructions without being on-site. |
3. Core Product Features: Remote Operation and Maintenance Dedicated Edition
3.1 Remote Recording and Fault Backtracking (COMTRADE Format)
RWZ-1000 supports high-sampling-rate recording. When a line abnormality occurs, the system automatically uploads waveforms from 2 cycles before the fault and 8 cycles after to the center. Engineers can view the phase relationship of current and voltage via a browser to determine if it is a phase-to-phase short circuit or a single-phase ground fault.
3.2 Remote Online Configuration and OTA Upgrades
Without the need for on-site serial cable connections, OM personnel can remotely modify sensor alarm thresholds, recloser logic, and reporting frequencies from the headquarter backend. It supports Over-the-Air (OTA) firmware updates, ensuring the system always runs the latest algorithms.
3.3 Equipment Health Early Warning (PHM Algorithm)
By long-term monitoring of line load fluctuations and leakage current trends, the system automatically generates "Equipment Health Reports." It provides early warnings for potential insulation weak points where failures might occur, achieving a transition from "fixing after trouble" to "preventive maintenance."
4. Comparison of Typical Maintenance Cases
RWZ-1000 demonstrates exceptional value for remote OM across different Eskom grid scenarios:
| Case Study | Environment and Pain Point Context | Remote OM Solution | Actual Outcome and Value |
|---|---|---|---|
| Case 1: North West Province Rural Grid | An 80km 33kV line requiring two employees and an entire day for traditional fault finding. | Installation of 15 sets of RWZ-1000 with real-time topology analysis via GIS platform. | Precise localization within 20 seconds; MTTR shortened by 90% for rapid power restoration. |
| Case 2: Joburg Industrial Park | Industrial users frequently exceeding capacity leads to transformer burnouts, but real-time monitoring is lacking. | Deployment of an online monitoring system with remote current over-limit alarms. | Intervened in 12 overload hazards early; transformer lifespan expected to increase by 30%. |
5. Summary of OM Value
5.1 Economic Benefits (ROI)
- OPEX reduced by 60%: Significant reduction in vehicle fuel costs and labor overtime pay.
- Equipment life extended by 25%: Avoiding long-term sub-health operation of equipment through precise load monitoring.
5.2 Social and Safety Benefits
- Improved Power Reliability (ASAI): Reduces long-term large-scale outages caused by fault finding.
- Zero Personnel Casualties: High-risk inspection tasks transformed into office-based digital monitoring.
| Standard No. | Name |
|---|---|
| IEC 60870-5-104 | Networked Telemetry, Telecontrol, and Data Acquisition Protocols |
| IEC 61850 | Communication Networks and Systems for Power Utility Automation |
| TST41-627 | Specification for Secondary Equipment Identification and Remote OM (Eskom Internal Standard) |
Disclaimer: The effectiveness of remote maintenance depends heavily on on-site network signal coverage. In signal blind spots, it is recommended to use the Rockwill LoRa private networking solution for relay forwarding.
