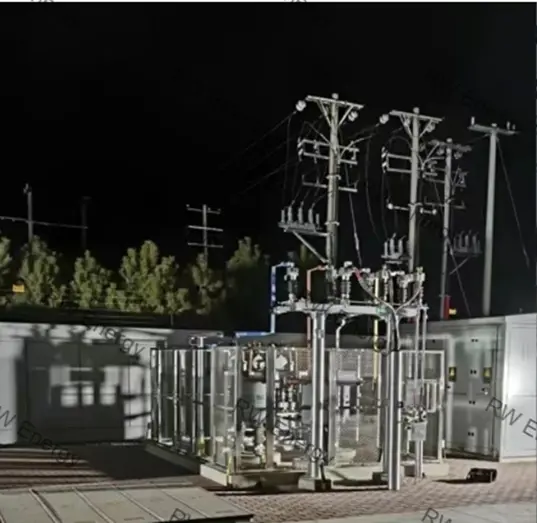

Nigeria Agricultural Irrigation Network 11 kV Intelligent Reactive Power Compensation Project Case Study

The 11kV Smart Reactive Power Compensation Project for Nigeria’s irrigation grid solved voltage and power factor issues, operating fault-free and setting a West African rural smart grid benchmark.

01 Project Overview

1.1 Project Background

As a major agricultural hub in West Africa, Nigeria’s northern state of Kano is a core production area for staple and cash crops like cotton, peanuts, rice, and maize. Agricultural irrigation here relies on the concentrated operation of large-scale water pumps and motors. The local distribution network is characterized by long lines, dispersed loads, and severe seasonal fluctuations. When irrigation pumps are started simultaneously, it often triggers voltage drops at the line ends, low power factors, high line losses, and frequent voltage fluctuations. These issues not only prevent irrigation equipment from starting properly—causing delays in farming schedules—but also increase grid losses and compromise supply stability, severely hindering agricultural productivity and food security.

In response to the Nigerian government’s goals of "Rural Electrification, Stable Agricultural Harvest, and Energy Saving," the Kano State Agricultural Irrigation Bureau officially introduced RW Energy’s 11 kV Multi-step Switching Reactive Power Compensation Devices in July 2023. Leveraging RW Energy’s technical expertise in outdoor reactive power compensation and power quality governance for rural grids, a customized intelligent compensation solution was provided for the northern Kano irrigation network. The project aims to provide precise voltage stabilization, dynamic compensation, and loss reduction to ensure reliable power for agriculture and support the modernization of West Africa’s power infrastructure.

1.2 Core Product and Parameters

A total of 16 sets of outdoor 11 kV multi-step switching reactive power compensation devices, along with associated fencing, grounding systems, and spare parts, were configured for this project. The core parameters are as follows:

02 Manufacturing and Quality Assurance

2.1 Core Technical Design

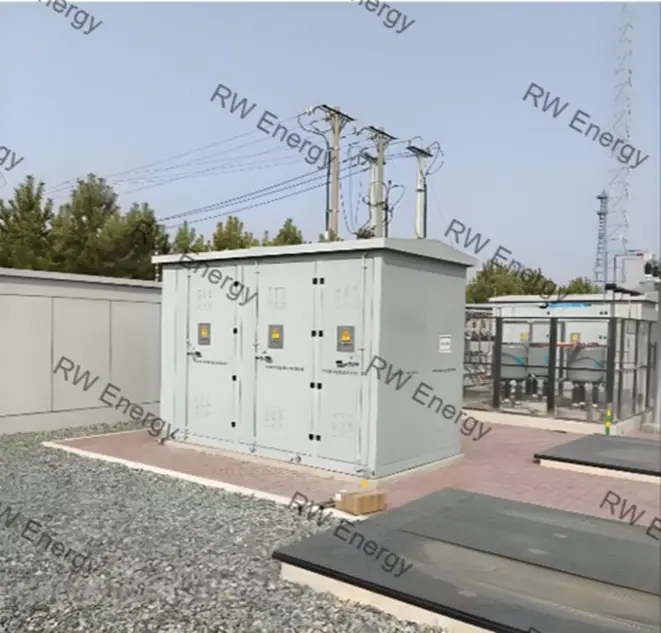

The RW Energy 11 kV system utilizes an integrated modular outdoor cabinet design, specifically optimized for the high temperature, high humidity, heavy dust, and rapid load fluctuations of Nigeria’s agricultural regions:

• Intelligent Step-Switching Control: Automatically switches capacitor groups based on the peak and valley of irrigation loads to achieve local dynamic balance of reactive power, avoiding over-compensation or under-compensation.
• Extreme Environment Adaptation: The enclosure is made of high-strength anti-corrosion cold-rolled steel with multi-layer powder coating. It features a sloped waterproof roof, elevated base, dust filters on vents, and internal dehumidification modules to withstand Tropical Savanna conditions (45 ℃ temp, 95 % humidity, and sandstorms).
• Safety and Stability: Core capacitors and reactors utilize low-loss, wide-temperature-range components. Integrated protection for over-voltage, under-voltage, over-current, harmonic limits, and temperature sensing ensures long-term stable operation in complex rural grids.
• Smart O&M: Built-in remote monitoring modules support real-time uploading of voltage, current, power factor, and switching status, meeting the needs of unattended maintenance in remote Nigerian grids.

2.2 Core Functions and Advantages

2.3 Quality Certification

RW Energy is certified under ISO 9001, ISO 14001, and ISO 45001. All products have passed authoritative tests by national high-voltage apparatus quality supervision and inspection centers, complying with IEC 60871 and SONCAP certification requirements for the Nigerian market.

2.4 Competitive Advantage vs. Traditional Solutions

03 Factory Acceptance Testing (FAT)

All 16 units underwent comprehensive factory tests in accordance with IEC 60871 (Capacitors) and IEC 60076-6 (Reactors):

• Dielectric Withstand Test: 1 min power frequency withstand at 42 kV and lightning impulse withstand at 75 kV, verifying insulation safety for West Africa’s high-humidity environments.
• Dynamic Compensation Test: Simulated load fluctuations from 0–100 %; achieved millisecond response with power factor stabilized above 0.95 without switching oscillations.
• Protection Function Test: Verified protection actions (over-voltage, over-current, etc.) within ≤ 50 ms with 100 % accuracy.
• Environmental Simulation: Continuous 72-hour full-load operation under 50 ℃ and 95 % humidity with stable performance.

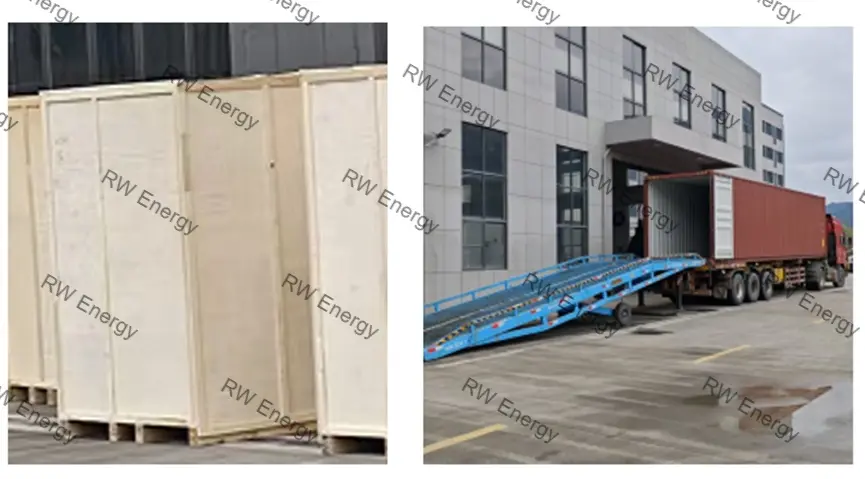

04 Packaging and Shipping

The equipment utilized specialized heavy-duty export packaging:

• Full moisture-proof vacuum sealing for core electrical components.
• Reinforced wooden crates with high-strength cushioning to withstand maritime and long-distance inland transport in Africa.
• Shipped with English packing lists, certificates, test reports, and SONCAP documents for smooth Nigerian customs clearance.

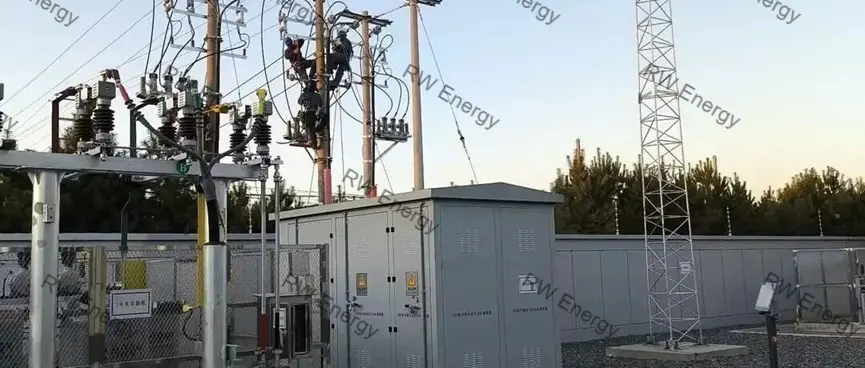

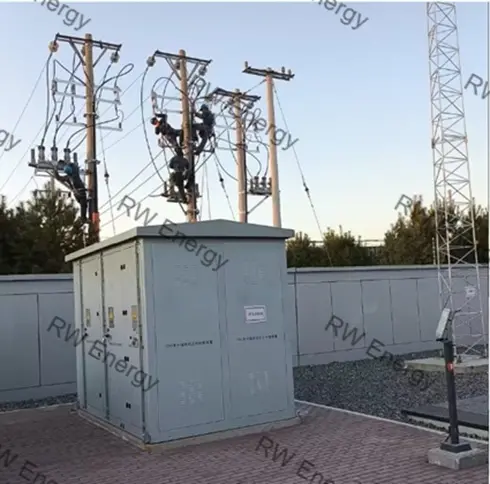

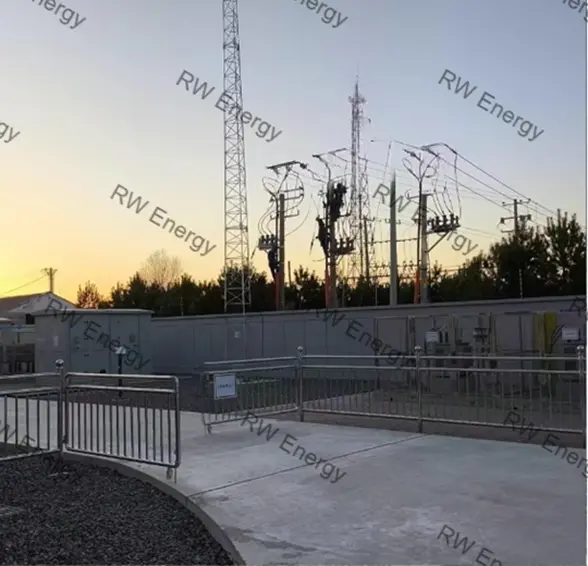

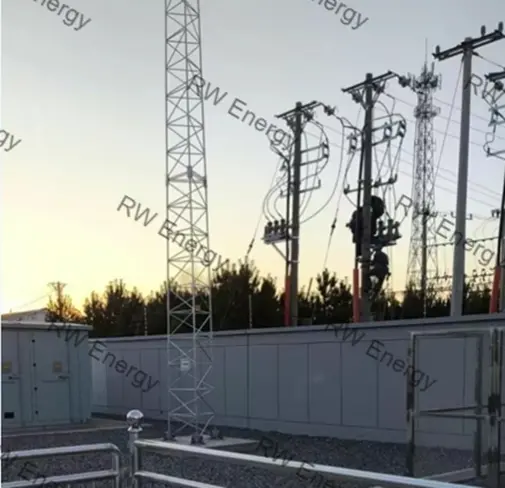

05 Installation and Operation Summary

5.1 Installation Implementation

RW Energy dispatched a professional technical team to Kano State to provide full-process English technical services:

• Guided foundation construction and earthing systems (ensuring resistance ≤ 4 Ω).
• Completed high-voltage cable terminations and insulation testing.
• Localized parameter configuration (adapted to Nigeria’s 11 kV grid fluctuation characteristics).
• Provided O&M training for local personnel and delivered English technical dossiers.

5.2 Operation Feedback

Since commissioning, the 16 units have operated stably with zero failures:

• Voltage Quality: End-of-line voltage fluctuation reduced from ±22 % to within ±3 %; pump startup success rate is 100 %.
• Power Factor: Improved from 0.65–0.75 to a stable 0.95–0.98; line losses reduced by 3 %-5 %.
• Reliability: Eliminated voltage dips and ensured continuous irrigation, preventing farming delays.
• O&M Efficiency: Remote monitoring reduced site inspections by 80 %.

The project received high praise from the Kano State Agricultural Irrigation Bureau and local power distribution companies: "RW Energy 11 kV multi-step switching reactive power compensation devices have thoroughly solved the challenges of low voltage, high losses, and instability in the northern irrigation grid. The equipment is high-temperature resistant, sandstorm-proof, and maintenance-free, perfectly adapting to Nigeria's environment. The professional and efficient service from the Chinese technical team has set a benchmark for agricultural power grid upgrades in West Africa."

06 Project Value and Industry Significance

6.1 Direct Value

• Solving Irrigation Power Challenges: Rapid response, precise voltage stabilization, and intelligent compensation ensure reliable electricity for agricultural production and residential life in Kano State.
• Significant Loss Reduction and Efficiency: Line losses are reduced by 3 % - 5 %, and the power factor consistently meets standards, creating direct economic benefits for the grid.
• O&M Efficiency Upgrade: Fully automatic intelligent control combined with remote monitoring completely replaces manual adjustments, significantly reducing operational and maintenance costs.

6.2 Industry and Social Value

• Establishing a Replicable Model: Provides a feasible and scalable benchmark solution for grid voltage governance and loss reduction in West African agricultural regions, driving the intelligent upgrade of Nigeria's distribution networks.
• Empowering Food Security: Supports agricultural irrigation with stable and reliable power, contributing to Nigeria’s rural revitalization and food security.
• Technical Iteration Benchmark: Drives the transformation of medium-voltage reactive power compensation from "crude manual adjustment" to "intelligent precision," adapting to the needs of Africa's emerging power systems.

07 Full Lifecycle O&M Managed Services

RW Energy provides localized West African full-lifecycle integrated O&M (Operation and Maintenance) managed services for the Kano State 11 kV multi-step switching reactive power compensation project. Our services cover power equipment such as 11 kV reactive power compensation devices, switchgear, and distribution automation terminals, managing the entire process from selection and adaptation, installation and commissioning, operation monitoring, regular inspection, maintenance, fault repair, and status assessment to decommissioning and replacement.

By implementing dedicated personnel responsibility, full-process control, traceable data, and closed-loop management, we optimize O&M strategies based on the remote, unattended, and high-temperature/dust characteristics of the Kano irrigation sites:

• Remote Monitoring: Real-time monitoring of operational parameters to preemptively identify fault risks.
• Preventive Maintenance: Annual on-site inspections and maintenance tailored to local climatic conditions (dust-proof, moisture-proof, and heat-resistant treatments).
• Local Support: Established localized West African spare parts warehouses with 24/7 fault repair response, supported by remote Chinese technical teams.

Our approach ensures long-term safe and stable equipment operation, extends service life, and reduces O&M costs, providing users with reliable, efficient, and worry-free power security. This model is suitable for 11 kV distribution networks, agricultural irrigation, and remote power systems across Africa.

Contact us for more details and customized power solutions!
