LSVR Low Voltage Automatic Regulator for Yinchuan Agricultural Irrigation Solves the 180V Undervoltage Crisis

01 General Overview: Rural Grid Mitigation in Yinchuan, Ningxia

1.1 Project Background

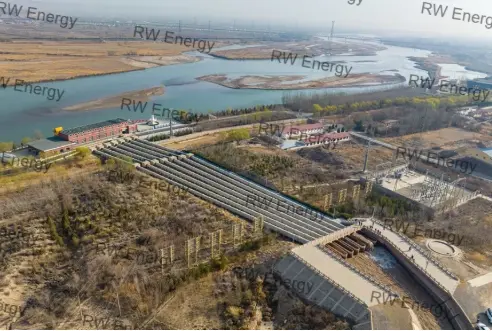

Yinchuan, Ningxia, is a vital agricultural production base where the rural distribution network carries heavy irrigation loads. During peak irrigation periods, long distribution lines combined with high demand fluctuations often lead to significant voltage drops at the terminal ends.

Before the implementation of this project, the measured terminal voltage at a specific agricultural irrigation station in Yinchuan dropped as low as 180 V, far below the national standard of 220 V ±7%. This resulted in frequent motor burnouts of water pumps and failures to start, severely impacting local farming and crop yields. To eliminate this bottleneck, the local utility decided to install two LSVR series low voltage automatic regulators manufactured by Rockwell Energy Company.

1.2 Technical Specifications

Based on the load requirements of the station, two LSVR units with 90 kVA and 30 kVA capacities were deployed:

1.3 Engineering Drawings

The project team provided precise on-site survey drawings, including the connection schematics between the LSVR units, distribution transformers, and LV distribution cabinets. Considering the windy and sandy climate of Yinchuan, the base support and dust-proof ventilation channels were specially reinforced.

02 Manufacturing Quality: Extreme Response and Resilience

2.1 Electronic Stepless Regulation

The LSVR utilizes high-performance solid-state electronic switching technology, completely abandoning traditional mechanical carbon brushes:

• Arc-free Switching: No sparks or mechanical wear during the regulation process, allowing for virtually unlimited operations.
• Millisecond Response: With a response time of ≤ 20 ms, the equipment can complete compensation within half a cycle when water pump motors cause instantaneous voltage sags, ensuring smooth motor startup.

2.2 Environmental Adaptation

The Yinchuan region experiences significant diurnal temperature variations, with scorching summers and frigid winters. The LSVR employs Class H insulation materials and a hermetically sealed enclosure with C3-grade corrosion protection. An intelligent temperature-controlled fan system ensures stable operation across the -40℃ to +70℃ range.

2.3 Digital Torque Control

During the assembly phase, all carrying connection points of the main circuit copper bars are verified using digital torque wrenches and coated with conductive paste. This prevents localized overheating caused by excessive contact resistance under long-term high-current irrigation loads.

03 Rigorous Testing: Simulating Extreme Voltage Drops

Before leaving the factory, this batch of equipment underwent comprehensive validation in our digital power laboratory:

• Wide-range Compensation Test: Simulated input voltage transitions from 180 V to 240 V, verifying that the output voltage remained stable within 220 V ±2%.
• Efficiency and Temperature Rise Test: Conducted 8-hour continuous load tests at 1.1 times the rated current. Verified system efficiency exceeded 98%, and key component temperature rises were below the limits specified in IEC 60076-1.
• Sudden Load Impact Test: Simulated the impact of a 6x startup current from multiple water pumps to verify the LSVR's surge resistance and protection logic.

04 Packing and Shipping: Secure Delivery to the Northwest

4.1 Packing

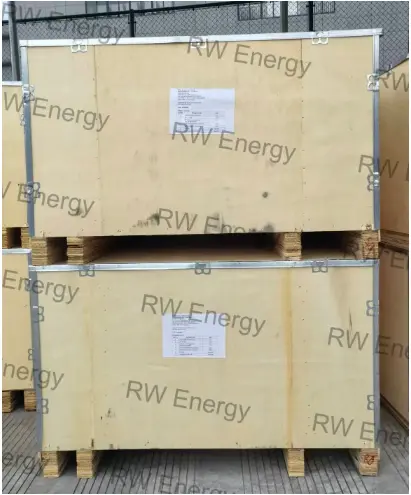

For long-distance land transport, the equipment enclosure was covered with double-layer anti-scratch protective film. Each unit was vacuum-sealed with industrial-grade molecular sieve desiccant. The exterior used heavy-duty, export-grade, non-fumigated wooden crates to provide superior structural protection.

4.2 Shipping

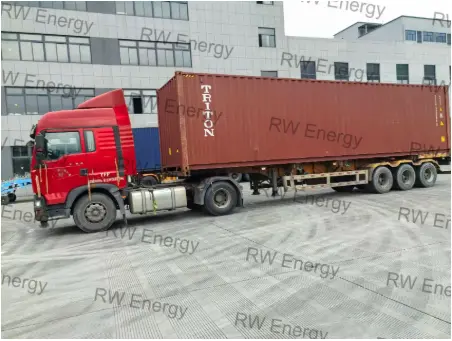

The equipment was transported by a professional heavy-duty logistics fleet. Since the LSVR contains precision electromagnetic components, spring-loaded vibration-damping pallets were installed at the bottom of the crates. Anti-tilt and anti-shock monitoring stickers were applied to ensure safety throughout the journey from the factory to the Yinchuan site.

05 Outcomes & Value: Proven Field Performance

5.1 Site Installation

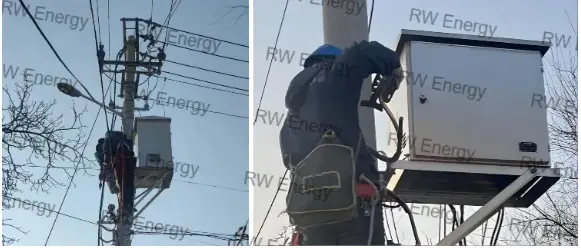

A series connection method was adopted on-site. Thanks to the standardized aviation plugs and modular wiring design of the LSVR, the two units (90 kVA and 30 kVA) were installed and commissioned within half a working day, minimizing the power outage window.

• Compliance with Voltage Standards: After commissioning, the original 180 V low voltage was stabilized and locked at 220 V ±2%, fully complying with utility power quality requirements.
• Increased Irrigation Efficiency: Local farmers reported significantly higher water output from pumps, and motors no longer overheated. The equipment failure rate dropped by over 85%.

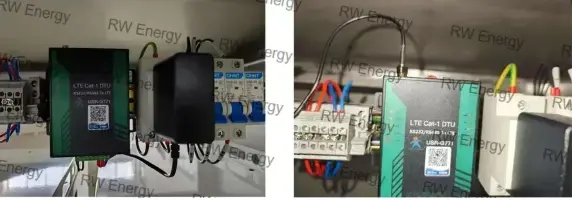

• Intelligent O&M Support: Built-in GPRS communication modules upload real-time operational data to the central monitoring station. Maintenance personnel can remotely view voltage fluctuation curves, achieving a leap from "manual inspection" to "intelligent monitoring."

Data before user device installation：

Data after user device installation：

06 Lifecycle Services: Comprehensive Customer Support

Rockwell Energy Company is committed to providing full support for the Ningxia power project:

• Remote Diagnostic Service: Utilizing our cloud platform for 24/7 status monitoring of the Yinchuan site.
• Extreme Weather Inspections: Providing a free annual infrared thermal imaging and communication system check before the summer irrigation peak.
• Firmware Optimization: Remotely optimizing compensation strategies via Over-the-Air (OTA) updates based on future load changes of the station.

Solving under-voltage challenges and securing the power foundation for agricultural irrigation. We remain dedicated to building efficient and stable green grids with our superior power electronics technology.
