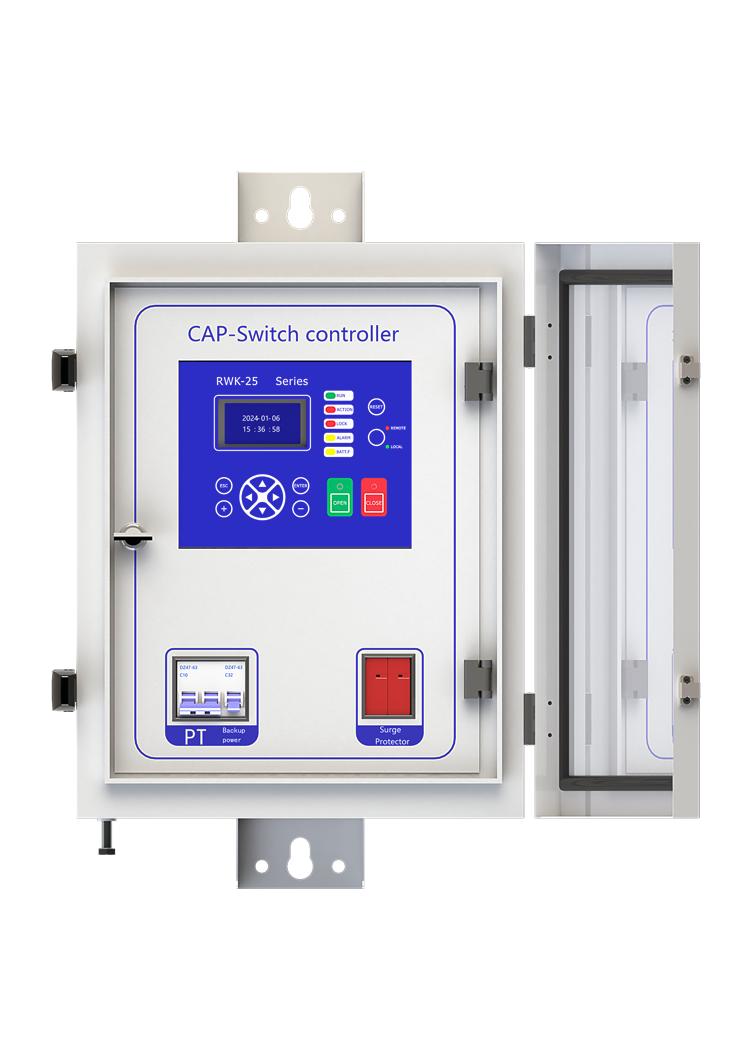

Capacitor bank controller
Key attributes
| Brand | Rw Energy |
| Model NO. | Capacitor bank controller |
| Rated voltage | 230V ±20% |
| Rated frequency | 50/60Hz |
| Electric energy consumption | ≤5W |
| Series | RWK-25 |
Description
Description
RWK-252H Capacitor bank controller cooperate with reactive power compensation device or manual operation, to implement the switch of the capacitor. The controller can record self inspection event, device start time, device action event.

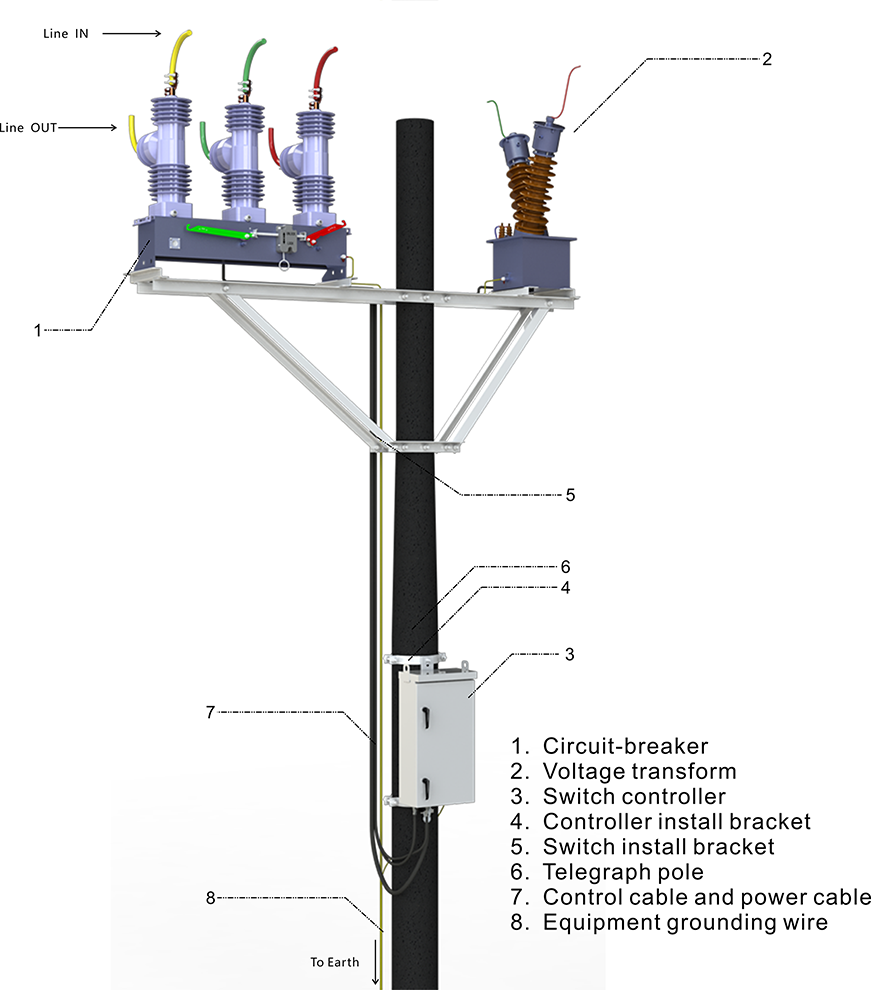

RWK-252H series is suitable for up to 35kV outdoor switch gear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers.
RWK-252H Capacitor bank controller control the permanent magnet circuit breaker, with fast response speed and stable performance.
Main function introduction
1. Control functions:
1) Lockout,
2) switch control and Remote switch control.
2. Data Storage functions:
1) Event Records,
2) Fault Records,
3) Measurands
Technology parameters
| Category | Item | Parameter |
|---|---|---|
| Model & system | Model | RWK-252HB |
| Version | V2.1.1 | |
| Type of operating mechanism | Magnetic Actuator type | |
| System language | English | |
| Power | Rated working voltage | 230V ±20% |
| Rated frequency | 50Hz/60Hz | |
| Electric energy consumption | ≤5W | |
| Switching value parameters | Number of DI group1 interfaces | 2COM&7DI |
| DI group1 Rated voltage | DC24V | |
| DI group1 current consumption | ≤2mA | |
| switching value resolution | Minimum 2ms | |
| Number of DO group1 interfaces | 2 groups NO | |
| DO group1 Rated voltage | 230VDC | |
| DO group1 Rated current | 120A |
| EMC technology parameters | Insulation resistance | ≥10MΩ |
| Voltage mutation | 100%, 0.5s | |
| High-frequency interference (series mode) | 1.5kVP, 1min | |
| High-frequency interference (common mode) | 2.5kVP, 1min | |
| transient pulse | 4.0kVP, 1min | |
| inrush current interference | 4.0kVP, 1.2/50μs | |
| electrostatic discharge | 8kV | |
| power frequency magnetic fields | 100A/m | |
| Damping oscillating magnetic field | 100A/m | |
| Power frequency withstand voltage | 2.5kV, 1min | |
| Lightning rush voltage | 5kV, 1.2/50μs | |
| enforce standards | DL/T 721-2000 class IV | |
| Working environment | Ambient temperature | -25℃ ~ +70℃ |
| Storing temperature | -40℃ ~ +70℃ | |
| Ambient humidity | 5% ~ 100% (Non-congealing) | |
| Rate of ambient temperature change | <25℃/h | |
| Altitude range | -100~3000m | |
| Machine case parameters | weight | > 6kg |
| size | 450×350×245mm | |
| Class of protection | IP55 |

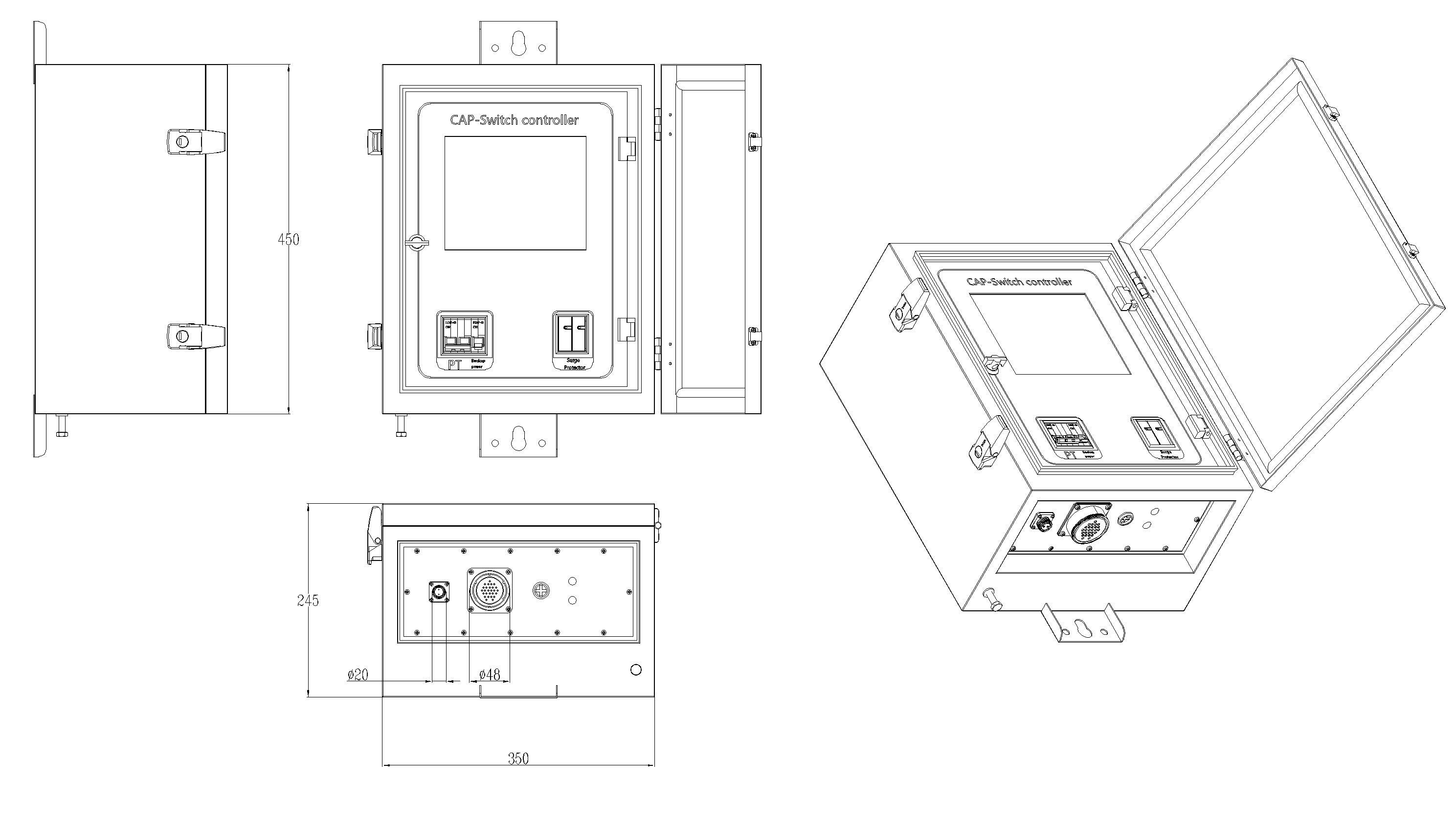

Device structure
About customization
The following optional functions are available: Power supply rated at 110V/60Hz.
For detailed customization, please contact the salesman.
Q: What is a capacitor switch?
A: A capacitor switch is an electrical device used to control the input and removal of a capacitor bank. It plays an important role in the power system.
Q: What is the function of capacitor switch?
A: The main function is to adjust reactive power. When the reactive power is insufficient in the power grid, the switch will put the capacitor in to compensate the reactive power, improve the power factor, improve the power quality, and reduce the line loss. When the reactive power is in excess, the capacitor can be removed.
Q: What should I pay attention to when using capacitor switch?
A: It should be noted that the switching frequency cannot be too high to avoid damage caused by frequent action of the capacitor. At the same time, it is necessary to reasonably choose switching according to the actual situation of the power grid
Documentation Resource Library Recloser Controllers
Certifications Recloser Controllers
FAQ for Recloser Controllers
It should be noted that the switching frequency cannot be too high to avoid damage caused by frequent action of the capacitor. At the same time, it is necessary to reasonably choose switching according to the actual situation of the power grid
The main function is to adjust reactive power. When the reactive power is insufficient in the power grid, the switch will put the capacitor in to compensate the reactive power, improve the power factor, improve the power quality, and reduce the line loss. When the reactive power is in excess, the capacitor can be removed.
Sure, this device cannot be upgraded online, but it requires offline firmware version upgrade using a burning device to upgrade more features or fix known bugs. As this device is a customized product, you need to provide us with the device's model number and version number when upgrading. Once we have determined the upgrade plan, we will contact you and provide you with the burning device and firmware upgrade package needed for the upgrade.
