Feeder Terminal Unit
Key attributes
| Brand | Rw Energy |
| Model NO. | Feeder Terminal Unit |
| Rated voltage | 230V ±20% |
| Rated frequency | 50/60Hz |
| Electric energy consumption | ≤5W |
| Series | RWK-55 |
Description
Description
RWK-55 overhead line protection switch intelligent controller is medium voltage overhead line grid monitoring unit, it can be equipped with RCW(RVB) type vacuum circuit breaker for achieve of automatic monitoring, fault analysis and event records.
Its given to us a safety power grid for cutting line fault and automatic recovery operation and power automation.
RWK-55 series is suitable for up to 35kV outdoor switchgear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers. RWK-55 intelligent controller is gathering with line protection, control, measurement and monitoring of voltage and current signals integrated automation and control devices outdoors.
RWK is an automatic management unit for single way/multi ways/ring network/two power sourcing, provided with all voltage and current signals and all functions. RWK-55 column switch intelligent controller supports: Wireless (GSM/GPRS/CDMA), Ethernet mode, WIFI, optical fiber, power line carrier, RS232/485, RJ45 and other forms of communication, and can access other station premises equipment (such as TTU, FTU, DTU, etc.).
Main function introduction
1. Protection relay functions:
1) 49 Thermal Overload,
2) 50 Three-section of Overcurrent (Ph.OC) ,
3) 50G/N/SEF Sensitive Earth Fault (SEF),
4) 27/59 Under/Over Voltage (Ph.OV/Ph.UV),
5) 51C Cold load pickup (Cold load).
2. Supervision functions:
1) 60CTS CT Supervision,
2) 60VTS VT Supervision,
3. Control functions:
1) 86 Lockout,
2) 79 Auto reclose,.
3) circuit-breaker control,
4. Monitoring Functions:
1) Primary currents for Phases and Zero sequence current,
2) Primary PT Voltage,
3) Frequency,
4) Binary Input/Output status,
5) Trip circuit healthy/failure,
6) Time and date,
7) Fault records,
8) Event records.
5. Communication functions:
a. Communication interface: RS485X1,RJ45X1
b. Communication protocol: IEC60870-5-101; IEC60870-5-104; DNP3.0; Modbus-RTU
c. PC software: RWK381HB-V2.1.3,The address of the information body can be edited and queried by PC software,
d. SCADA system: SCADA systems that support the four protocols shown in "b.”.
6. Data Storage functions:
1) Event Records,
2) Fault Records，
3) Measurands.
7. remote signaling remote measuring, remote controlling function can be customized address.
Technology parameters
| Item | Parameter | RWK-551HBV | RWK-552HBV |
|---|---|---|---|
| Model & system | Model | RWK-551HBV | RWK-552HBV |
| Version | V3.3.1 | ||
| Type of operating mechanism | Spring mechanism type | Magnetic Actuator type | |
| System language | Chinese Simplified | English | |
| PC software language | Chinese Simplified | English | |
| Power | Rated working voltage | 230V ±20% | |
| Rated frequency | 50Hz/60Hz | ||
| Electric energy consumption | ≤5W | ||
| Power management I/O | I/O configuration | 1 DC voltage measurements
|
|
| I/O rated Voltage | DC24V | ||
| I/O current consumption | ≤10mA | ||
| Analog parameters | Current transform quantity | 3 phase current + 1 earth current | |
| Rated current in | 5A or 1A | ||
| Voltage transform quantity | 1 voltage transform + 3 voltage transforms(optional) | ||
| Voltage transform Nominal | 40…120 Vrms | ||
| Voltage sensor quantity | 1 Zero Phase Sequence Voltage(optional) | ||
| Voltage sensor Nominal | 0…60 Vrms | ||
| Protection relay and measurement accuracy | Current protection (secondary side) | 0.05~50A ±3% | |
| Zero-sequence current protection (secondary side) | 0.02~10A ±1% | ||
| Voltage | 10~280V ±5% | ||
| Protection performance parameters | Event resolution | 2ms | ||
| Quick-break export time | Under the input of 1.2In magnification, the whole group action time is less than 40ms | |||
| Protect export time error | ≤1% | |||
| Switching value parameters | Number of DI group1 interfaces | 2COM & 7DI | ||
| DI group1 Rated voltage | DC24V | |||
| DI group1 current consumption | ≤2mA | |||
| switching value resolution | Minimum 2ms | |||
| Number of DO group1 interfaces | 2 groups NO | |||
| DO group1 Rated voltage | 230VAC/30VDC | 230VDC | ||
| DO group1 Rated current | 30A | 60A | 135A | |
| Communication I/O parameters | RS485 port or RS232 | 1DB9 10Mbps or 1DB9 120Mbps | ||
| Update port | 1*RJ45 10Mbps | |||
| EMC technology parameters | Insulation resistance | ≥10MΩ |
| Voltage mutation | 100%, 0.5s | |
| High-frequency interference (series mode) | 1.5kVP, 1min | |
| High-frequency interference (common mode) | 2.5kVP, 1min | |
| transient pulse | 4.0kVP, 1min | |
| inrush current interference | 4.0kVP, 1.2/50μs | |
| electrostatic discharge | 8kV | |
| power frequency magnetic fields | 100A/m | |
| Damping oscillating magnetic field | 100A/m | |
| Power frequency withstand voltage | 2.5kV, 1min | |
| Lightning rush voltage | 5kV, 1.2/50μs | |
| enforce standards | DL/T 721-2000 class IV | |
| Working environment | Ambient temperature | -25℃ ~ +70℃ |
| Storing temperature | -40℃ ~ +70℃ | |
| Ambient humidity | 5% ~ 100% (Non-congealing cream) | |
| Rate of ambient temperature change | <25℃/h | |
| Altitude range | -100~3000m |
| Machine case parameters | weight | > 6kg |
| size | 450x350x245mm | |
| Class of protection | IP55 |

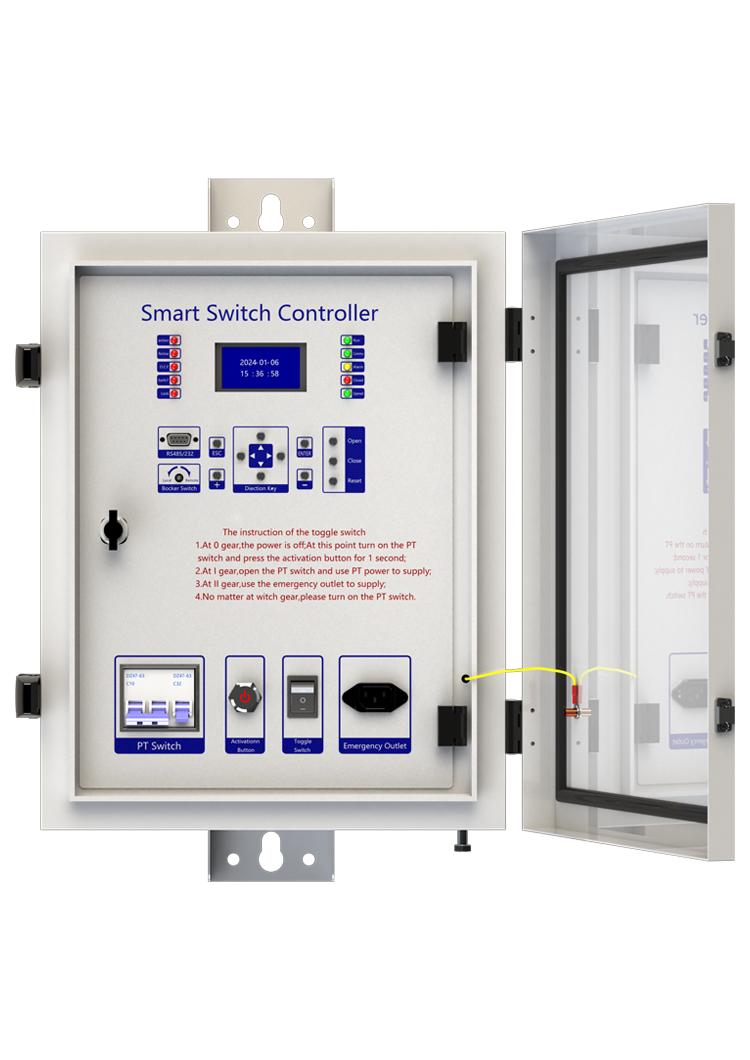

Device structure
About customization
The following optional functions are available: Power supply rated at 110V/60Hz,3 Voltage transform, 1 Zero phase sequence voltage sensor, cabinet heating defrosting device, 1 battery measurement, 1 battery activation management, GPRS communication module,1~2 signal indicators,1~4 protection pressure plates, the second voltage transformer, custom aviation socket signal definition.
For detailed customization, please contact the salesman.
Q: What does the line protection switch controller do?
A: It is mainly used to protect the line security. When the line is overloaded, short circuit and other abnormal conditions, the line protection switch controller can quickly detect these problems, and then automatically cut off the circuit, to prevent the line from being damaged by too much current, to avoid causing fire and other dangerous situations. Q: How does it detect a line anomaly?
A: It has a sophisticated current detection device inside. When the current in the line exceeds the set safe value, whether it is due to overload caused by too many appliances or short circuit caused by line fault, the detection device can sense the change in the current and trigger the controller action.
Q: Is the line protection switch controller durable?
A: Generally speaking, if it is a qualified product, it is more durable. The electronic components used are strictly screened, and the housing has good protection and can adapt to different environmental conditions, but it is also checked and maintained regularly to ensure that it works properly.
Documentation Resource Library Recloser Controllers
Certifications Recloser Controllers
FAQ for Recloser Controllers
This device can connect to SCADA System and DMS, and you can connect the terminal to the server according to your local network conditions. This terminal supports CDMA (3G)/LTE (4G)/ NR（5G）, ETH, fiber optic and other ways to access the network. You can also contact us directly, and we will provide you with a solution for distribution network automation.
Three-Section Overcurrent Protection is a coordinated protection scheme widely used in power systems to detect and isolate faults (e.g., short circuits) while ensuring selective tripping. It consists of three stages with distinct operating characteristics based on current magnitude and time delay:
- Instantaneous Overcurrent Protection (Section I)
Function: Responds immediately to severe overcurrents exceeding a high-set threshold (e.g., 5–10 times the rated current).
Purpose: Rapidly clears close-in faults (near the protection device) to prevent equipment damage.
Key Feature: No intentional time delay (operates in milliseconds).
- Time-Delayed Overcurrent Protection (Section II)
Function: Triggers after a predefined short delay (e.g., 0.1–0.5 seconds) for moderate overcurrents (e.g., 2–5 times the rated current).
Purpose: Handles faults farther from the protection device, allowing downstream breakers to clear localized faults first (selectivity).
Coordination: Employs a time-graded scheme—higher fault currents (closer faults) trip faster, while lower currents (remote faults) trip slower.
- Backup Overcurrent Protection (Section III)
Function: Activates after a longer time delay (e.g., several seconds) for low-magnitude overcurrents (e.g., 1.2–2 times the rated current).
Purpose: Serves as a backup for primary protection (Sections I/II) and addresses overloads or persistent faults.
Characteristic: May use an inverse-time curve (trip time decreases as current increases).
Coordination Principle
The three sections work hierarchically:
Section I clears severe faults instantly.
Section II handles moderate faults with short delays, prioritizing system selectivity.
Section III provides backup protection, ensuring reliability if upstream protections fail.
This layered approach minimizes outage scope, balances speed and selectivity, and enhances grid stability.
This protection device supports 2-channel serial data communication, RS232 or RS485 bus, independent of each other. It can be configured separately. The configuration method is as follows:
- Enter the settings page: Edit → Para;
- Configure communication function on/off: Scroll down and find Comm1 Status set to 1, indicating it is turned on, and 0 indicates it is turned off. The default setting is open;
- Set communication baud rate: According to the baud rate configuration of RTU or protocol converter, the default value is 9600;
- Set communication protocol: There are four protocols to choose from, corresponding to setting 1 as IEC-60870-101, setting 2 as IEC-60870-104, setting 3 as DNP3.0, setting 4 as ModBus-RTU, default as IEC-60870-101;
- Set communication balance (only valid for multiple IEC-60870-101): Set 1 to IEC-60870-101 protocol balance mode and 0 to imbalance mode;
- Set the communication source address: Set the value to 1-65535, default value to 1;
- Set the target address for the report: set the value to 0-65535, default value to 1;
- Set active upload: 0 does not actively upload, 1 actively uploads, default value is 1;
- Save settings: After completing the settings, press the "Enter" key, enter the password 0099 (some models are 0077), press the "Enter" key again, and the screen will prompt "Save successful", indicating that the settings have been saved.
At this point, channel 1 has been established, and channel 2 is established in the same way as channel 1.
NOTE: 1. The product has been set to default settings before delivery to meet most usage scenarios. It is not recommended to make modifications or only modify controllable items (such as modifying communication protocols, configuring communication functions on/off, etc.) when it can be used normally
