Low-Voltage Static Passive Harmonic Filter & Compensation Device Harmonic Mitigation Solution
Product Overview

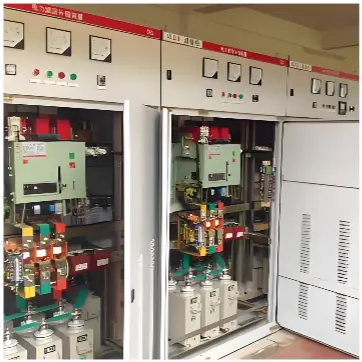

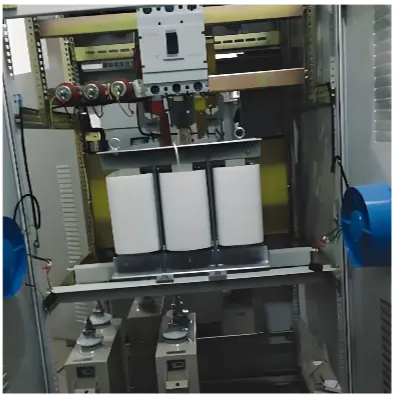

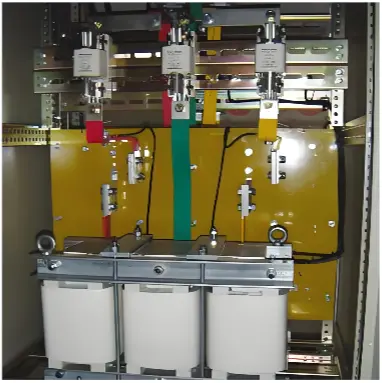

The RWFC series low-voltage static passive harmonic filter and compensation device is an economical tuning-type filtering and reactive power compensation solution. It is composed of professionally designed filter reactors, filter capacitors, filter resistors, contactors, circuit breakers, and other components that form tuned LC branches. At the resonant frequency, where XCn = XLn, the tuned filter provides a low-impedance path for targeted harmonic orders, effectively absorbing and suppressing characteristic harmonics generated by non-linear loads.
By reducing harmonic distortion and providing reactive power compensation, the device improves power factor, enhances system stability, and mitigates harmonic pollution in the distribution network. The RWFC series features integrated protection and control, easy operation, and tuning branches designed through computer simulation based on actual site conditions to ensure optimal performance and maximize equipment efficiency and energy savings.
Key Features
- Targeted harmonic suppression:
Tuned filter branches absorb major harmonic orders such as 5th, 7th, 11th, and others, ensuring effective harmonic mitigation. - Improved power factor:
Provides reactive compensation to raise the power factor and reduce line losses. - Digital control & stable operation:
Equipped with integrated protection and monitoring, including over-current protection, over-voltage protection, under-voltage protection, capacitor protection, and system fault indication. - Optimized for user applications:
Each tuned branch is designed using computer simulation to match the user’s load characteristics and ensure best-in-class filtering performance. - Reduced losses & enhanced equipment lifespan:
Lower THD improves voltage waveform stability, reduces heating of transformers, motors, and cables, and extends equipment service life. - Simple installation & maintenance:
Modular structure simplifies installation, operation, and long-term maintenance.
Technical Specifications
- Rated voltage: 220 V ~ 1000 V (−15% ~ +10%)
- Rated frequency: 50 Hz (±1 Hz)
- Operating temperature: −25 °C to +40 °C
- Altitude: ≤ 2000 m
- Relative humidity: ≤ 85% (at 25 °C, non-condensing)
- Ambient conditions:
Non-corrosive gas environment
Dust-free, moisture-free, and free of flammable or explosive gases
Ordering Information
When placing an order, please provide:
- Rated system voltage
- Harmonic spectrum characteristics at site
- Required filtering capacity
- Required reactive compensation capacity
- Load type and operating conditions
- Capacitor and reactor configuration requirements
- Installation conditions, cable connection method, and cabinet color
- Any additional custom requirements
