RW Energy Sanmenxia Rural and Transformer Edge Low Voltage Regulator Project Case Study

Adapted to the complex terrain and climate of the Sanmenxia mountainous area, this solution leverages the intelligent regulation and outdoor protection advantages of low-voltage automatic regulators to resolve unstable voltage and excessive power loss in rural power grids. It achieves a win-win outcome of energy conservation and stable power supply, boosting the digital upgrading of rural power networks.

01 Project Overview

1.1 Project Background

Sanmenxia City, Henan Province, is situated in the Western Henan mountainous region, with rural areas predominantly distributed across mountains and hills. Constrained by the challenging terrain, the power grid faces inherent shortfalls, such as excessive supply radii, thin conductor diameters, and decentralized layouts. As rural revitalization progresses, the proliferation of high-power household appliances and the surge in specialized agricultural production loads have led to seasonal and periodic load spikes, further exacerbating terminal voltage instability.

Prior to project implementation, terminal voltage in remote rural areas of Sanmenxia frequently dropped below 180 V, with the voltage qualification rate falling under 80%. This not only prevented appliances from starting and caused frequent tripping—impacting farmers' daily lives—but also resulted in the stalling of agricultural production equipment, stunting the growth of specialized local industries. Simultaneously, low voltage led to a significant increase in line and transformer losses, causing equipment to overheat and age prematurely. This created serious safety hazards and became a critical bottleneck for rural power grid upgrades and regional development.

To overcome rural low-voltage governance challenges and respond to grid upgrade policies, Sanmenxia power authorities introduced RW Energy Low Voltage Automatic Regulators in 2024. Leveraging its mature technology and project experience, RW Energy provided customized low-voltage solutions for the local rural distribution network. These solutions precisely address pain points such as terminal voltage fluctuations and supply instability, ensuring safe and reliable power for both production and residential use, thereby facilitating the implementation of rural revitalization initiatives.

1.2 Core Product and Parameters

Tailored for the mountainous terrain and pole-mounted installation requirements of Sanmenxia, RW Energy deployed multiple sets of Low Voltage Automatic Regulators.

02 Manufacturing and Quality Assurance

2.1 Core Technical Design

The RW Energy LAVR is specifically engineered for outdoor rural environments with the following technical highlights:

• Intelligent Dynamic Regulation: Equipped with a high-performance processor, it monitors output voltage in real-time. Utilizing Thyristor (SCR) zero-crossing switching technology, it achieves millisecond-level response without arc interference or mechanical wear, ensuring stable terminal voltage even during abrupt load changes.
• Independent Three-phase Regulation: Supports phase-segregated compensation to resolve extreme unbalance issues where one phase is low while others are high, a common problem in rural grids with heavy single-phase loads.
• Low-loss Autotransformer Structure: The internal impedance is 30% lower than traditional regulators, keeping self-loss under 2%, which aligns with energy-saving and carbon-reduction goals.

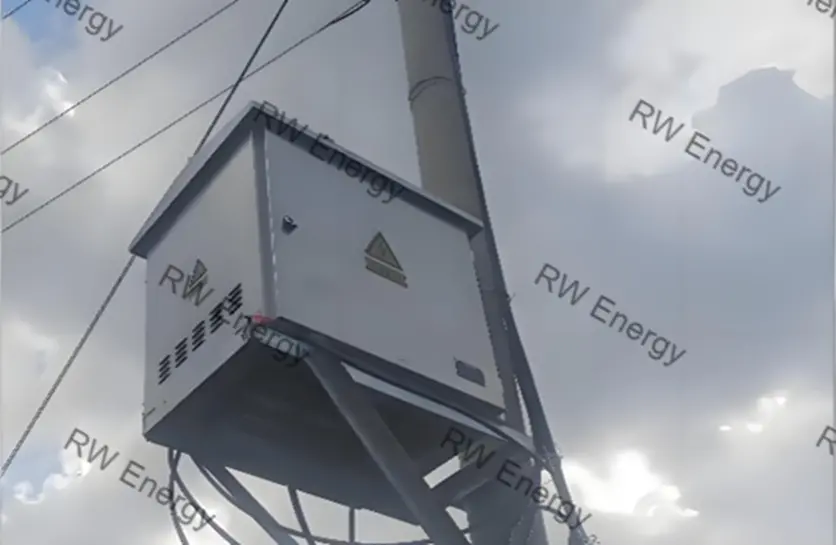

• All-weather Outdoor Protection: Features an IP54-rated stainless steel enclosure. The pole-mounted design eliminates the need for dedicated distribution rooms, saving over 80% in civil engineering costs.

• Fault Bypass Protection: Includes automatic protection for power failure, over-temperature, overload, and under-voltage. The system switches to bypass mode in less than 100 ms during faults to ensure continuous power supply.

2.2 Quality Certification

RW Energy is ISO 9001, ISO 14001, and ISO 45001 certified. The LAVR units have passed rigorous testing by authoritative national laboratories, complying with standards such as GB/T 12325 (Voltage Deviation) and GB/T 7251.1 (Low-voltage Switchgear).

03 Rigorous Testing

To ensure reliability in real-world rural conditions, all units underwent limit-condition validation at the RW Energy Digital Power Laboratory:

• Wide-range Compensation Test: Simulated input fluctuations from 180 V to 240 V, maintaining a stable output of 220 V ±2%.
• Heavy Load and Temperature Rise Test: Continuous 8-hour operation at 1.1x rated current with system efficiency exceeding 98%. Temperature rise complies with the JB/T 8749 standard.
• Load Impact Test: Simulated a 6x starting current impact from agricultural machinery to verify surge resistance and prevent nuisance tripping.
• Environmental Adaptation: 72-hour continuous operation under simulated high-temperature, high-humidity, and lightning-prone mountainous conditions.

04 Packaging and Logistics

Considering the rugged terrain of Western Henan, equipment was secured in export-grade, moisture-proof, and shock-resistant packaging. Reinforced wooden crates were used for inland transportation to mountain sites, with all accessories categorized and labeled for immediate field assembly.

05 Field Installation and Operational Summary

5.1 Installation and Implementation

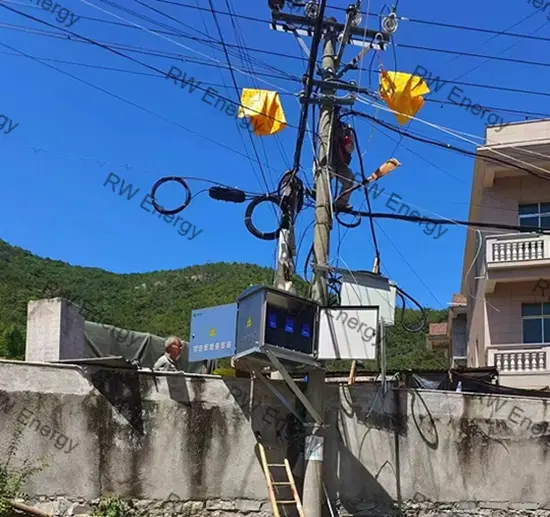

RW Energy dispatched a professional technical team to the Sanmenxia project site to provide end-to-end installation and commissioning services tailored to the specific pole-mounted scenarios:

• Field Survey: The technical team conducted on-site inspections for each installation point. Based on the power supply radius, load conditions, and local terrain, they determined the optimal pole positions and optimized installation plans to ensure equipment compatibility with site conditions.
• Foundation Construction: The team guided the project owner in welding and securing installation brackets and laying the grounding (earthing) system, ensuring reliable grounding to enhance lightning protection and anti-interference capabilities.

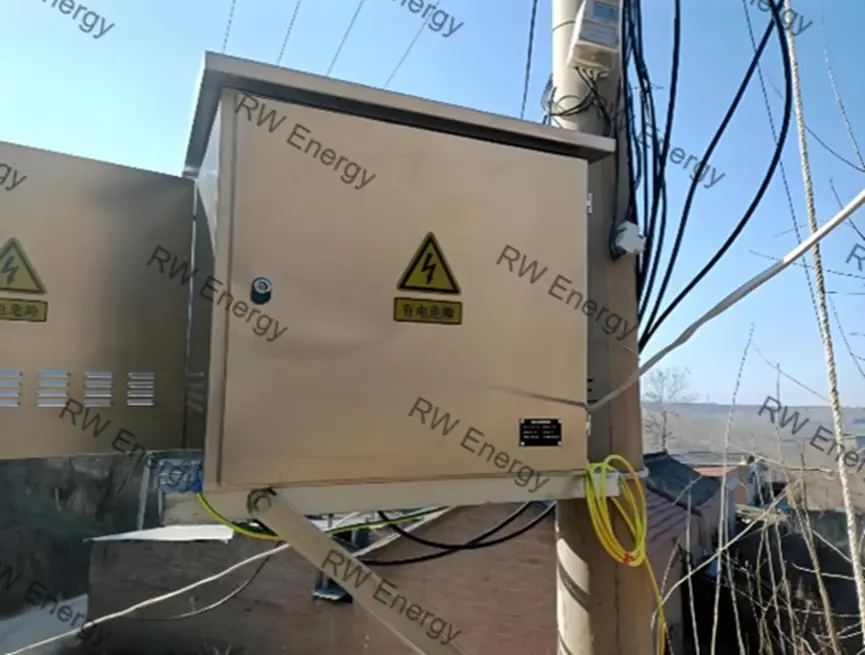

• Equipment Installation: Completed the hoisting, positioning, and securing of the regulators. This process ensured the device levelness and mechanical stability, fully matching the requirements for outdoor pole-mounted installation.

• Wiring and Commissioning: Executed low-voltage cable wiring and insulation testing while verifying the reliability of all line connections. On-site power-on commissioning was performed to configure controller parameters and verify core functions, including voltage regulation and fault protection.
• O&M Training: Conducted specialized training for local utility personnel, covering equipment operation, routine inspection, and troubleshooting. Detailed O&M manuals and technical documentation were delivered to ensure the team mastered essential maintenance skills.

5.2 Operational Feedback

Since commissioning, the equipment has demonstrated exceptional stability with zero recorded fault-related downtime. The low-voltage challenges in Sanmenxia's rural areas have been fully resolved, with all performance indicators meeting or exceeding expectations:

• Significant Improvement in Voltage Quality: The project has effectively addressed terminal low-voltage and frequent fluctuation issues. The regional voltage qualification rate has increased from less than 80% prior to the project to over 99.5%, with terminal voltage stabilized within the 220 V standard range. This ensures that household appliances and agricultural production machinery can start and operate reliably.
• Measurable Energy Savings and Loss Reduction: Due to the low self-loss of the equipment, both line losses and transformer reactive power losses have been significantly reduced. Post-commissioning, the regional grid's line loss rate has decreased by more than 3%, resulting in substantial annual energy savings and a marked reduction in grid operation and maintenance (O&M) costs.
• Comprehensive Power Supply Safety: With high-grade stainless steel enclosure protection and a robust lightning/fault protection mechanism, safety hazards such as equipment overheating and short circuits have been effectively mitigated. This has led to a major increase in the overall safety rate of rural power usage.
• Outstanding Scenario Adaptability: The adoption of an outdoor pole-mounted installation eliminated the need for constructing new distribution rooms. This streamlined construction and rapid deployment have significantly lowered the infrastructure investment required for rural power grid upgrades.

Local authorities commented: "RW Energy’s solution has fundamentally resolved the 'last mile' low-voltage bottleneck in Sanmenxia, providing a solid power foundation for rural industries and residential life."

06 Life-cycle Managed O&M Services

RW Energy provides an integrated O&M service model for the Sanmenxia project, covering the entire equipment lifecycle from selection and installation to real-time monitoring and decommissioning. Our 24-hour emergency response mechanism and periodic health assessments ensure the long-term, safe, and efficient operation of the rural power grid.

For more details on customized grid solutions, contact us to receive your exclusive power quality proposal!
