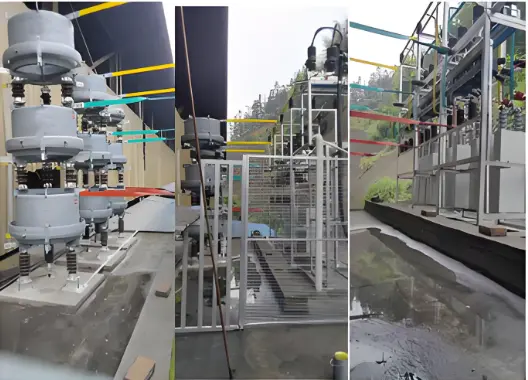

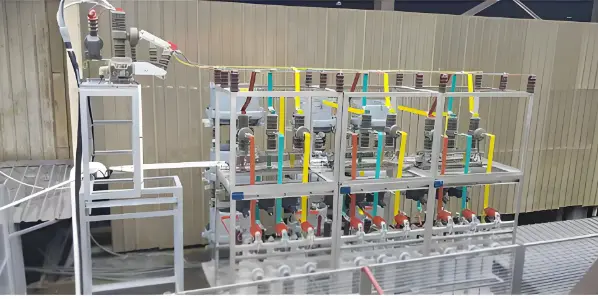

Suqian Rongxin Metal: Medium‑Frequency Furnace Harmonic Mitigation and Reactive Power Compensation Solution
This solution targets the serious power quality problems caused by nonlinear, high-harmonic loads such as medium-frequency induction furnaces at Jiangsu Suqian Rongxin Metal Products Co., Ltd., centered on an H5+H7+H11 high-voltage filter compensation bank with a total capacity of 17550 kvar.
Built around the design concept of precision filtering, reactive power compensation and voltage stabilization, it systematically resolves harmonic-induced equipment damage, lower production efficiency, product quality issues and energy cost problems, safeguarding production continuity and product yield while achieving both energy savings and safe operation.
Project Overview
| Item | Details |
|---|---|
| Project name | Jiangsu Suqian Rongxin Metal Products power quality improvement project |
| Project type | Power quality improvement (metal fabrication / medium-frequency induction heating) |
| Application scenario | Concentrated connection of nonlinear high-harmonic loads such as medium-frequency furnaces |
| Key problems | 5th, 7th and 11th harmonic pollution; large reactive power swings; resonance and overvoltage risk |
| Core solution | H5+H7+H11 high-voltage filter compensation bank, 17550 kvar total capacity |
| Design concept | Precision filtering, reactive power compensation, voltage stabilization |
| Applicable standards | GB/T 14549-1993 "Power Quality – Harmonics in Public Supply Networks"; metallurgical industry power quality standards |
| Targets | Power factor ≥ 0.95; 5th/7th harmonic filtering rate ≥ 85% (expected) |
1. Project Background and Current-State Analysis
1.1 Project Overview

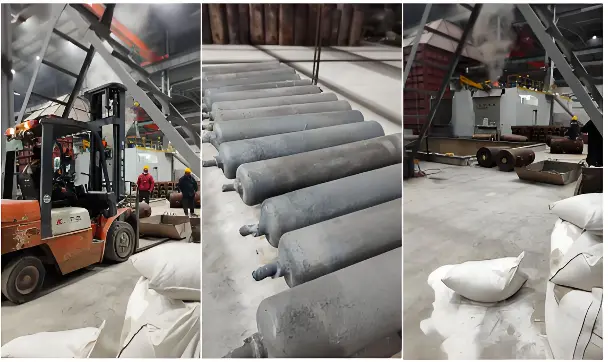

This project serves the metal fabrication production line of Jiangsu Suqian Rongxin Metal Products Co., Ltd. The core on-site load is the medium-frequency induction heating furnace (medium-frequency furnace). During operation, such equipment produces large amounts of characteristic harmonics (mainly the 5th, 7th and 11th) accompanied by severe reactive power swings, significantly degrading system power quality.
1.2 Core Pain Points and Hazards
Field surveys show that severe harmonic pollution and reactive power deficiency affect production operation across four dimensions:
| Dimension | Symptoms | Consequence analysis |
|---|---|---|
| Equipment safety | Frequent bursting of the furnace capacitor cabinet; transformer overheating and audible noise | Harmonic current causes capacitor overcurrent and heating, triggering resonance overvoltage and shortening equipment life |
| Production efficiency | Unstable heating efficiency, poor temperature control accuracy | Voltage waveform distortion disturbs the medium-frequency power supply control logic, causing uneven heating |
| Product quality | High casting reject rate, quality scrap | Power fluctuation makes melt temperature uncontrollable, affecting metal material uniformity |
| Energy cost | High line losses; power-factor adjustment penalties | Harmonic current does no useful work but generates heat losses, while a low power factor leads to high electricity bills |
2. Improvement Objectives and Design Basis
2.1 Improvement Objectives
Based on GB/T 14549-1993 "Power Quality – Harmonics in Public Supply Networks" and the metallurgical industry power quality standards, the following core targets are set:
- Harmonic suppression: focus on filtering the dominant 5th and 7th harmonics while also addressing the higher-frequency 11th harmonic, significantly reducing the total harmonic voltage distortion (THDu);
- Reactive power compensation: raise the system power factor above 0.95 after compensation to avoid power-factor adjustment penalties;
- System stability: avoid parallel/series resonance and ensure the safe operation of the medium-frequency furnaces and transformers;
- Energy saving: reduce additional transformer and line losses and extend equipment service life.
2.2 Design Approach
Given the complex harmonic spectrum of the medium-frequency furnace, an integrated strategy of "spectrum-based, tiered filtering with primary/auxiliary branch configuration" is adopted, using dedicated LC tuned branches:
- Low-order harmonic mitigation (H5+H7): filters out the most prevalent and harmful low-order harmonics while providing the main reactive support at power frequency — the best cost-effectiveness;
- High-frequency harmonic mitigation (H11): further suppresses harmonic levels to meet standard requirements, reduces equipment heating and interference, avoids high-frequency resonance risk, and protects control and on-line testing equipment;
- Combined switching: the three branches are switched in according to the harmonic spectrum, covering the main harmonics generated by nonlinear equipment such as medium-frequency furnaces, and simultaneously achieving harmonic filtering, reactive compensation and equipment protection.
3. Core Technical Solution
3.1 Configuration Overview
To meet the plant's 17550 kvar total demand, the high-voltage filter compensation bank is configured as follows:
| Equipment | Specification/Type | Function |
|---|---|---|
| H5 filter branch | Nominal tuning 235 Hz (4.7th) | Absorbs 5th harmonics, also provides reactive compensation at power frequency |
| H7 filter branch | Nominal tuning 340 Hz (6.8th) | Absorbs 7th harmonics, also provides reactive compensation at power frequency |
| H11 filter branch | Nominal tuning 540 Hz (10.8th) | Targets high-frequency harmonics, prevents resonance, protects control and on-line testing equipment |
| HV capacitors | 35 kV tank-assembled / single-phase (in series groups) | Provides capacitive reactive power and supports system voltage |
| Series reactors | Dry-type / oil-immersed iron-core | Limits closing inrush current and suppresses amplification of high-order harmonics |
| Switching device | Low-restrike vacuum circuit breaker | Enables fast, restrike-free switching of the capacitor bank |
3.2 Key Technical Measures
3.2.1 Precision Tuning Technology
Using the L-C series resonance principle, the natural frequency of each filter branch is designed to absorb specific harmonics. Around these frequencies, the branch impedance becomes extremely low, forming a harmonic "trap" that forces the harmonic current into the filter instead of the grid. In engineering practice a detuned design is applied (e.g., the 5th branch is designed at the 4.7th), leaving a safe margin to prevent harmonic amplification incidents.
3.2.2 Equipment Thermal Protection
- Transformer protection: after harmonics are filtered out, skin and eddy-current losses in the transformer drop significantly and temperature rise returns to normal;
- Capacitor protection: preventing harmonic current from flowing directly through the capacitors avoids dielectric breakdown or swelling caused by overcurrent and overvoltage.
3.2.3 Intelligent Switching and Control
A low-restrike vacuum circuit breaker with controlled (point-on-wave) closing keeps the closing inrush current within 1.5 times the rated capacitor bank current. The monitoring system collects grid data in real time and automatically switches filter branches according to the reactive power deficit, achieving "on-demand compensation".
4. Features and Advantages
| Feature | Description |
|---|---|
| Highly targeted | H5+H7+H11 parameters are customized to the medium-frequency furnace load characteristics, avoiding "over-treatment" or "under-treatment" |
| Cost-effective | Prioritizes the most prevalent 5th/7th harmonics for minimal investment and maximum improvement |
| Integrated design | Harmonic mitigation, reactive compensation and equipment protection together — one investment, multiple benefits |
| Reliable operation | Complete package with low-restrike switchgear and comprehensive protection, suited to frequent furnace start/stop duty |
4.1 Solution Comparison and Selection Basis
For medium-frequency furnace harmonic mitigation, the mainstream approaches are conventional fixed capacitor compensation, active power filters (APF) and the H5+H7+H11 filter compensation bank proposed here. The three approaches are compared and the selection basis is as follows:
| Comparison dimension | Conventional capacitor compensation | APF (active power filter) | This solution: H5+H7+H11 filter bank |
|---|---|---|---|
| Harmonic mitigation | No filtering function; prone to parallel resonance with the system, amplifying harmonics | Dynamic tracking mitigation; good results across the full spectrum | Tiered mitigation of the 5th/7th/11th characteristic harmonics with efficient absorption |
| Reactive compensation | Can compensate reactive power at power frequency, but constrained by resonance | Active equipment is not suitable for large-capacity reactive compensation | Harmonic filtering and reactive compensation in one |
| Investment cost | Lowest, but high failure rate and poor results | Extremely costly at 17550 kvar class; poor cost-effectiveness | Moderate; one investment, multiple benefits |
| Operation & maintenance | Capacitors fail frequently, heavy maintenance | Many power units, high cooling requirements, complex maintenance | Complete passive equipment, simple structure, reliable operation |
| Suitable scenarios | Conventional compensation with no harmonic loads | Small-to-medium capacity, complex-spectrum dynamic mitigation | Large-capacity industrial sites with concentrated medium-frequency furnace load and well-defined harmonic characteristics |
Selection conclusion: since medium-frequency furnace harmonics are dominated by the 5th/7th/11th and demand large capacity, this solution mitigates the main harmonics in a tiered manner at minimal cost while combining reactive compensation and equipment protection — the most cost-effective approach for the current operating conditions.
5. Expected Results and Benefits
5.1 Technical Benefits
- Improved waveforms: after commissioning, the filtering rate of the 5th and 7th harmonic current is expected to exceed 85% (expected figure; subject to on-site measured acceptance), with voltage distortion meeting GB/T 14549-1993;
- Interference eliminated: mal-operation rates of protection and monitoring systems drop significantly and the station operating environment is purified;
- Grid stability: system impedance characteristics are optimized, substantially enhancing immunity to interference.
5.2 Economic and Social Benefits
| Benefit type | Details | Estimated value |
|---|---|---|
| Direct | Reduced power-factor adjustment penalties; lower transformer and line losses | To be quantified based on local tariffs, reactive power assessment standards and measured loss data; verified by actual electricity bills after commissioning |
| Indirect | Lower equipment repair/replacement cost; reduced unplanned outage losses | Extended life of core equipment such as transformers; duration assessed per the IEC 60076-7 thermal aging model |
| Operational | Fewer protection trips and unplanned shutdowns; higher line availability | Improved continuous production line stability |
| Safety | Electrical fire hazards avoided; personnel safety protected | Major safety incident risk eliminated |
Note: the economic benefits in the table above are qualitative expectations. Specific amounts must be calculated after commissioning based on measured harmonic/power factor data and local tariff policy.
5.3 Expected Performance Improvement
After commissioning, the key power quality indicators are expected to improve as follows (subject to acceptance measurement):
| Indicator | Before (current status) | After | Improvement/result |
|---|---|---|---|
| Total harmonic voltage distortion (THDu) | 9% ~ 13% (substantially exceeded) | < 3% | Meets GB/T 14549-1993 (35 kV limit 3%) |
| 5th harmonic current content | 22% ~ 28% | < 5% | Substantially reduced |
| 7th harmonic current content | 12% ~ 18% | < 4% | Strong suppression |
| 11th harmonic current content | 8% ~ 12% | < 3% | Clear improvement |
| Power factor (PF) | 0.78 ~ 0.85 (highly variable) | ≥ 0.95 | Stably compliant |
| Capacitor failure rate | Avg. 2 ~ 3 groups damaged per month | Substantially reduced | Clear improvement |
| Transformer operating condition | High noise, high temperature rise | Smooth, quiet operation at normal temperature | Clear improvement |
Note: the "after" figures above are expected values derived from equipment performance and system evaluation. Final values are subject to commissioning acceptance measurements.
6. Project Implementation and O&M Support
6.1 Implementation Process
| Phase | Work content |
|---|---|
| 1. On-site survey | Measure background harmonics on the 35 kV busbar and medium-frequency furnace load characteristics (including start/stop and multiple-furnace parallel conditions) |
| 2. Simulation | Build a system model to verify filtering performance and resonance points |
| 3. Manufacturing | Factory prefabrication with strict routine tests (withstand voltage, partial discharge, protection commissioning) |
| 4. Installation & commissioning | On-site installation, secondary wiring, integrated system testing |
| 5. Acceptance & commissioning | Load test, verification of targets, handover |
6.2 After-Sales Service
- Technical training: principles, operation and troubleshooting training for the owner;
- Periodic inspection: regular checks of capacitor capacitance, reactor temperature and connection point tightness;
- Emergency response: 7×24 technical support for rapid fault response.
Conclusion
Through the scientific configuration of a 17550 kvar H5+H7+H11 filter compensation bank, this solution systematically resolves the current power quality pain points of the Rongxin Metal Products project and builds a solid electrical safety defense line for the enterprise.
By addressing equipment protection and system stability alongside harmonic mitigation, it delivers both economic and safety benefits — a reliable power quality improvement solution for the medium-frequency furnace industry.
